Triumph 1978 Workshop Manual for Bonneville T140V & 140E Tiger TR7V from engine no. KH17124. BLASTON/2511

Product Description

Triumph 1978 Workshop Manual for Bonneville T140V & 140E Tiger TR7V from engine no. KH17124. BLASTON/2511

This Triumph Workshop Manual covers models:

– Triumph Bonneville 750 T140V

– Triumph Bonneville 750 T140E

– Triumph Tiger 750 TR7V

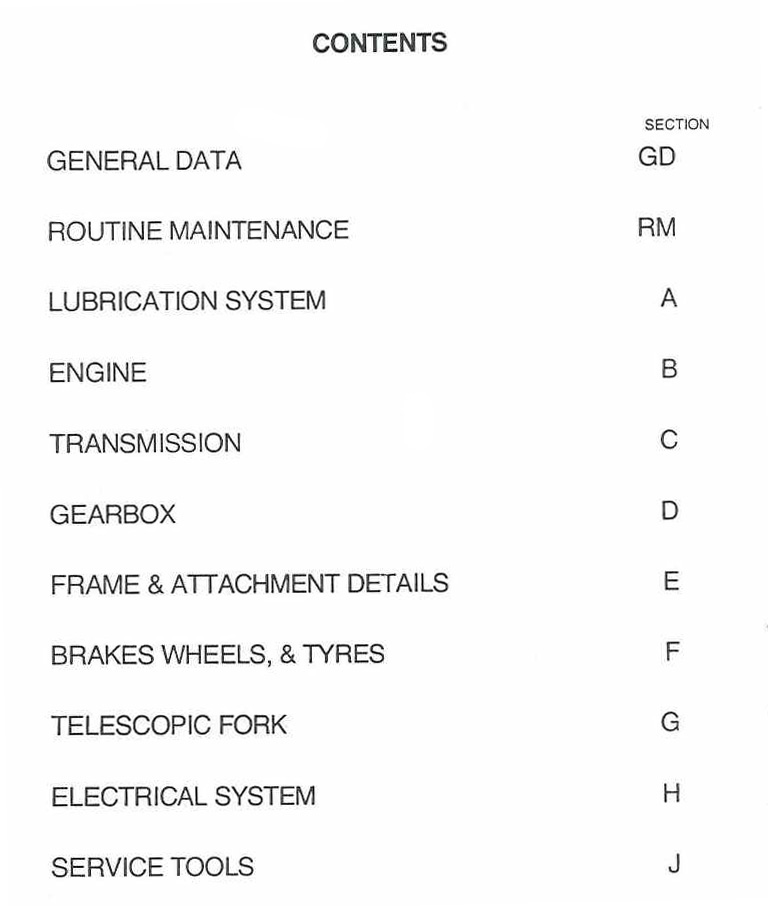

This manual is divided into sections dealing with major assemblies, throughout the machine, each section subdivided into sequence order corresponding to normal operations of strip down, examination and rebuilding procedure.

Note: All references to the L.H or R.H side of the machine relate to a rider sitting astride the machine and facing forwards.

Wiring Diagram: Section H, Fig. H14

Pages: 99

Please Note:

Black & White photocopy set.

“Some originals available on request”.
